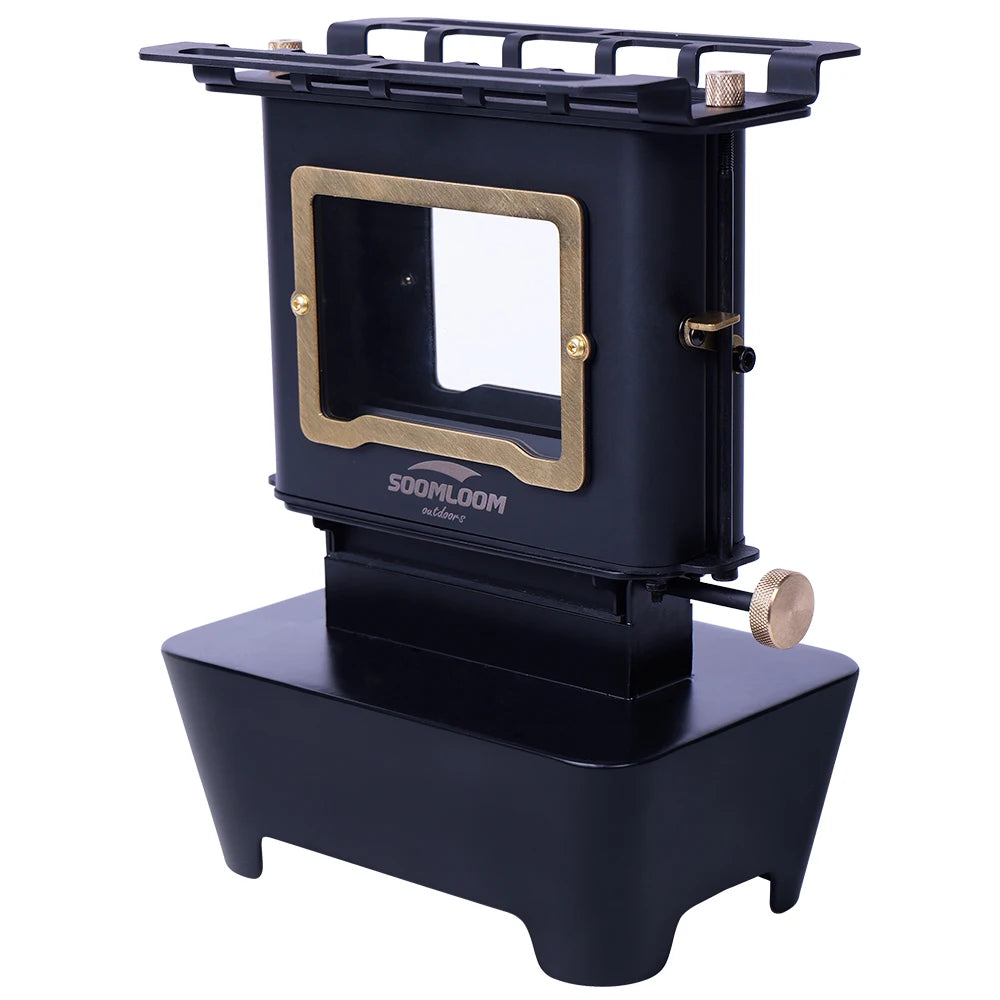

Soomloom Multi-Purpose Camping Kerosene Lamp Stove Iron Stove

Specifications:

Brand: soomloom
Name: Kerosene Lamp Stove
Model no.: stove-kerosene
Weight: 2kg
Color: as picture

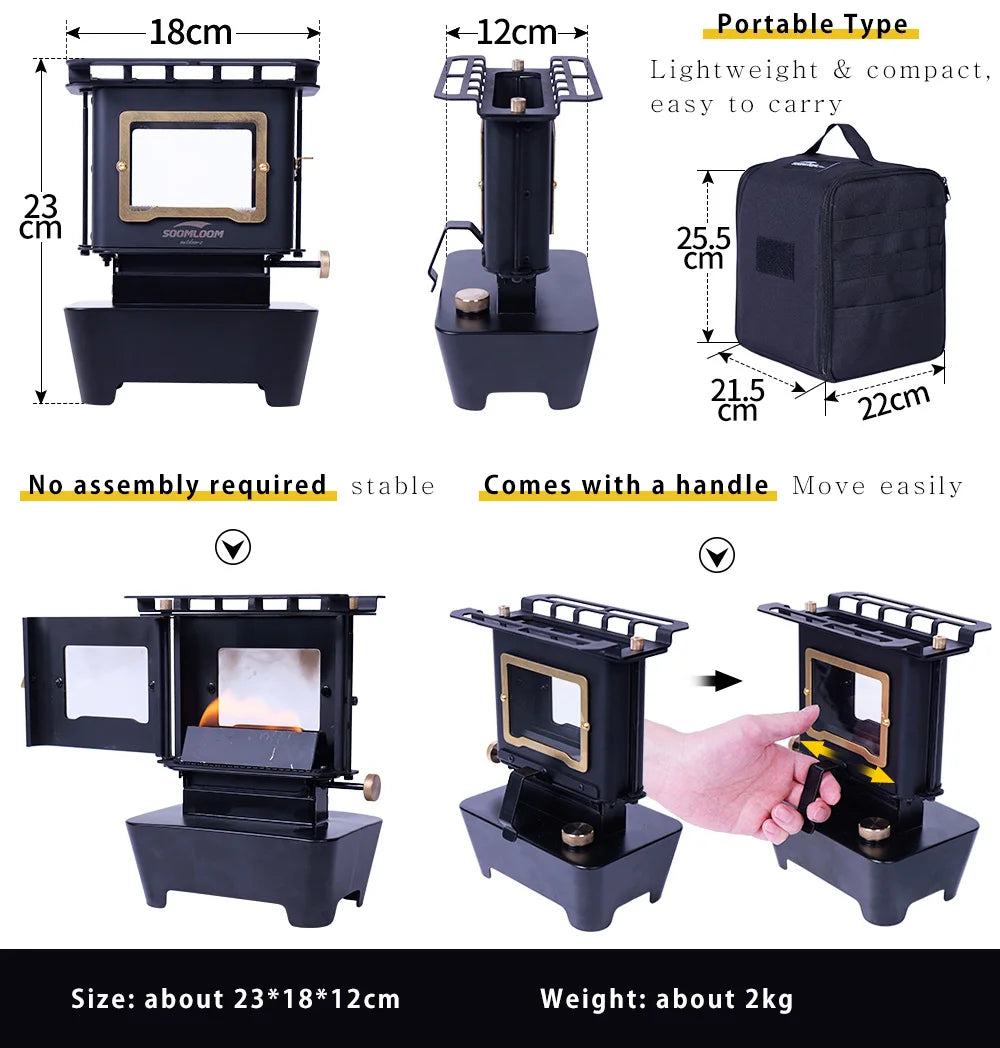

Size: 18*12*23cm
Storage bag size: 21.5x22x25.5cm
Material: SUS430 stainless steel , Brass
Wick: approx.10 ×15cm pure cotton
Fuel tank capacity: 420ml
Burning time: about 9 hours (when the fuel tank is full)

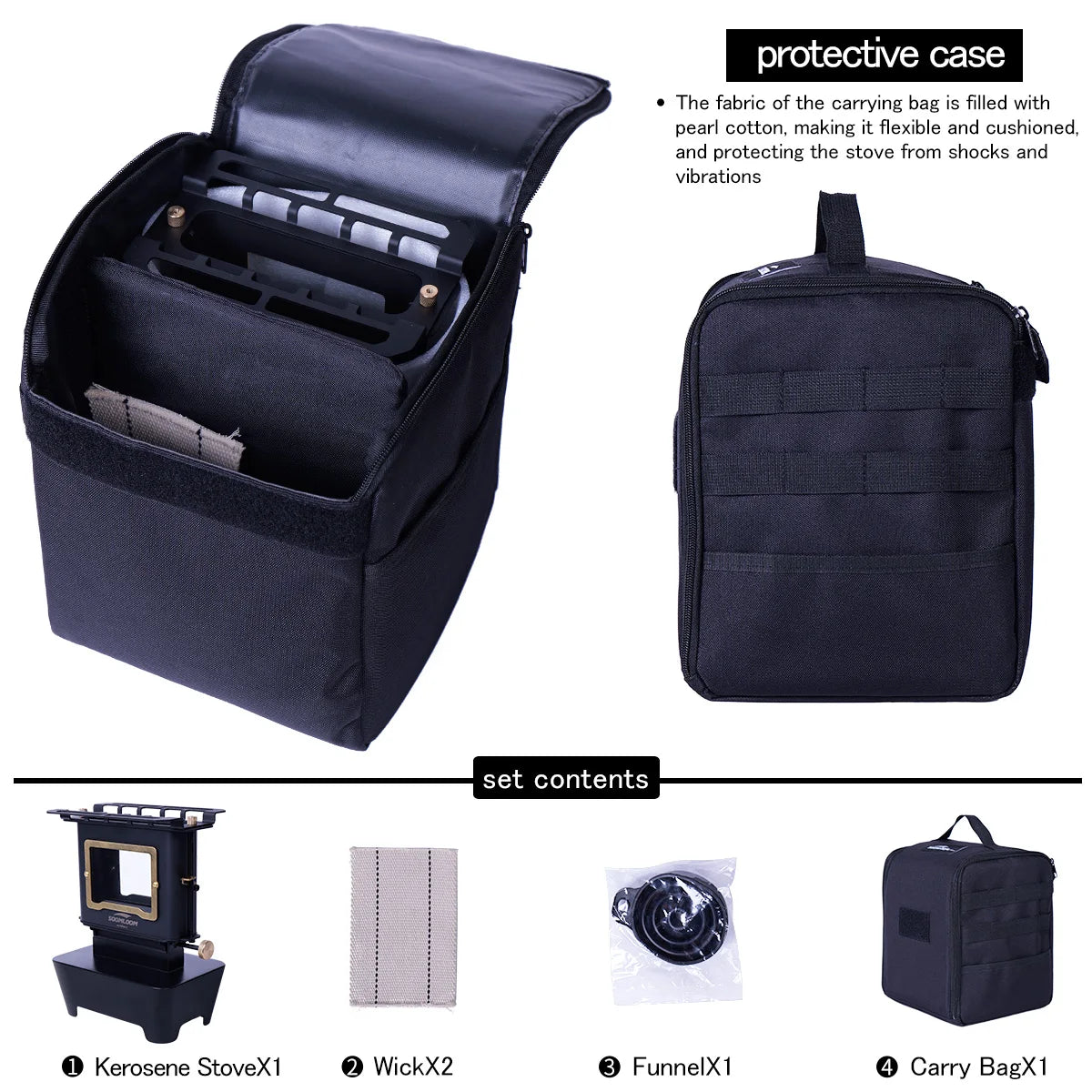

Package list:

1* Kerosene Lamp Stove
2* Wick
1* Funnel
1* Carry Bag

Precautions:

Preparation: Before using the fire-view stove, make sure it is firmly installed and the stove components are intact.Check if the base, burner, and other parts are clean, and wipe off any dust with a clean cloth if necessary.

Fuel filling: Before fuel filling operation, first make sure there are no open flames or heat sources near the fire-view stove, then pour kerosene into the refueling port, be careful not to overfill. After refueling, close the cap tightly, and use a clean cloth to wipe the outer wall of the kerosene stove to prevent oil splashing.

lgnition: Before igniting, make sure there is no excess kerosene residue on the burner and wick to prevent a large flame.Use a lighter or match to light the cotton wick on the burner, and adjust the wick length as needed after lighting. After ignition, slowly adjust the height of the kerosene wick to maintain a stable and moderate flame.

Wick Adjustment: The fire-view stove's burning effect and flame brightness are related to the adjustment of the wick.lf the flame is too small or unstable, adjust the wick height appropriately.To increase the flame, you can gently turn the wick adjustment knob clockwise; conversely, to decrease the flame, turn the knob counterclockwise

Safe Operation: Be sure to pay attention to safety when using the fire-view stove.Avoid using the fire-view stove near flammable or explosive materials, and prevent kerosene from splashing on your body or the outer wall of the fire-view stove to avoid fire hazards. Stay alert during use to avoid kerosene spillage and be sure of good ventilation in the surrounding area so that any smoke generated can be discharged promptly. Especially when used indoors, make sure that doors and windows are open to prevent smoke buildup and ensure an adequate oxygen supply.

Safe Extinguishing: To extinguish, turn the knob counterclockwise to lower the wick back into the stove, blow out the flame, and close the front door of the fire-view stove. Wait for the stove to cool completely before replacing or repairing the wick.

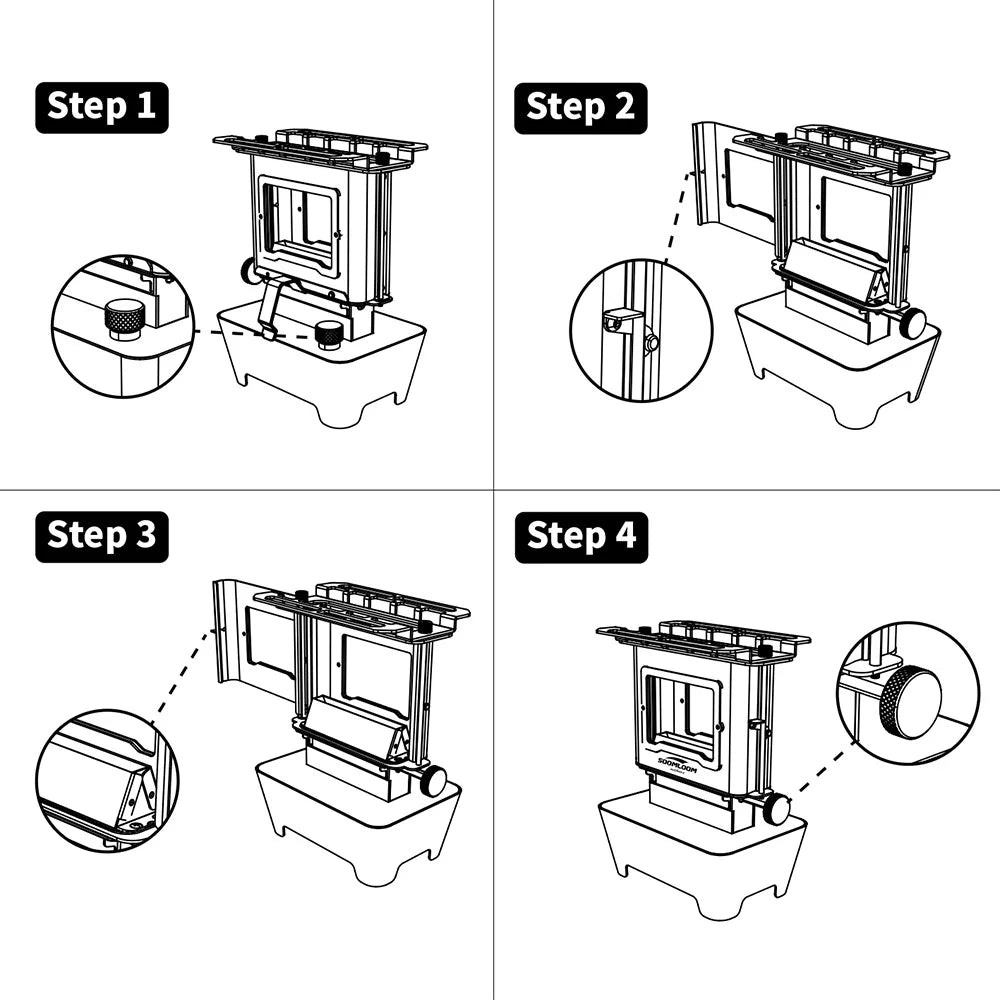

Step 1
1.Take out the kerosene stove from thecarry bag.
2.Unscrew the brass fuel cap and fill the appropriate amount of fuel into the tank.
3.For the first time use, after refueling, let it stand for 15 minutes to allow the wick to fully absorb the fuel.

Step 2
1.Remove the latch on the front fire-view door.
2.Lift the front fire-view door to the left and turn the brass wick knob to expose the wick by about 2mm.

Step 3
1.Use a lighter to light the wick.
Tips:lt is recommended to use a professional camping extendable lighter to light the fire for safety.

Step 4
1.Close the front fire-view door and secure the latch.
2.Adjust the brass wick knob to control the flame strength.
3.To extinguish the flame,, lower the wick back into the stove and blow it out.
